Main parameter of DGWX7-Front Drive Motor


specificationparameter
Driving positionFront
Wheel size16in-28in
Spoke36holes 12G/13G
Rated power250W
Rated voltage24V~36V~48V
Max.torque≥40N.m
Efficiency≥80%
Cable sideRight
Number of magnet16/20
Reduction gear ratio1:4.3
Installation dimension100mm
Inside speed sensor1~6
Hall sensorWith/Without
BrakeV-brake
Classification of waterproofIPX5
Weight3.4Kg

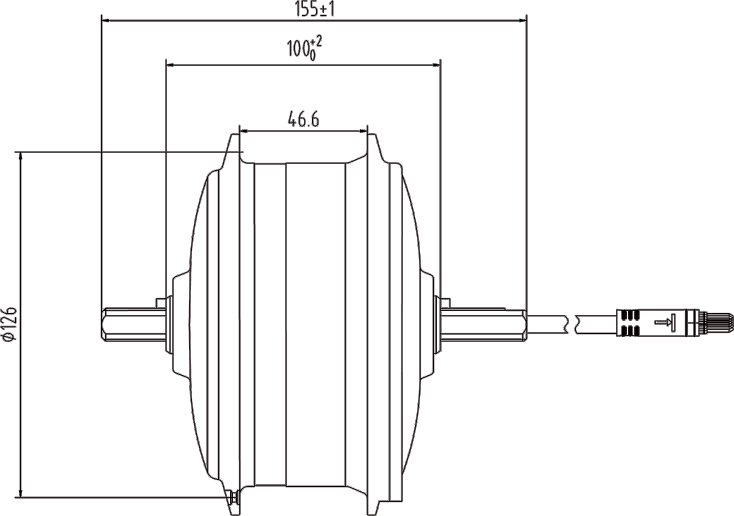

Drawing of DGWX7-Front Drive Motor


DGWX7
