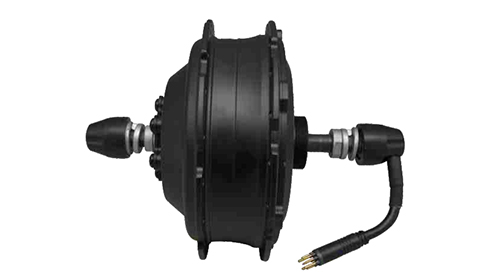

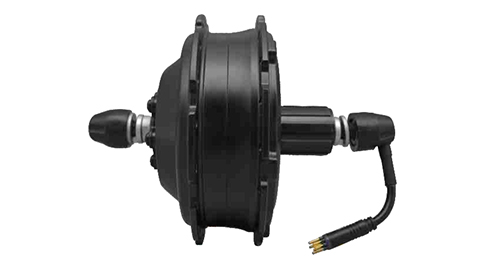

Specification of DGWX2C, DGWX2S-Rear Drive Motor-city bike




specificationparameter
Driving positionRear
Wheel size16in-28in
Spoke36holes 12G/13G
Rated power250W~350W
Rated voltage36V~48V
Max.torque≥50N.m
Efficiency≥80%
Cable sideRight
Number of magnet30
Reduction gear ratio0:01
Installation dimension135mm
Inside speed sensor1~6
Hall sensorWith/Without
Free wheelCassette 10-11S
Screw 6-7S
BrakeDisc-brake
V-brake
Classification of waterproofIPX5
Weight3.6Kg

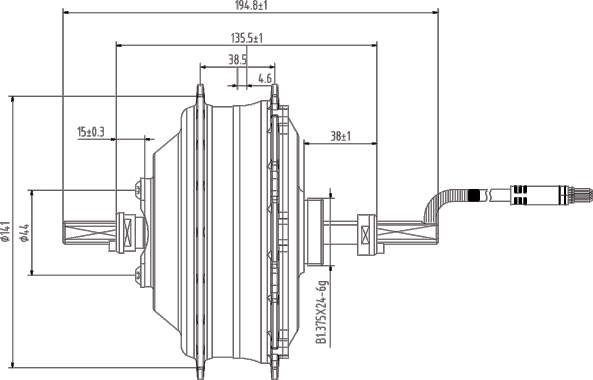

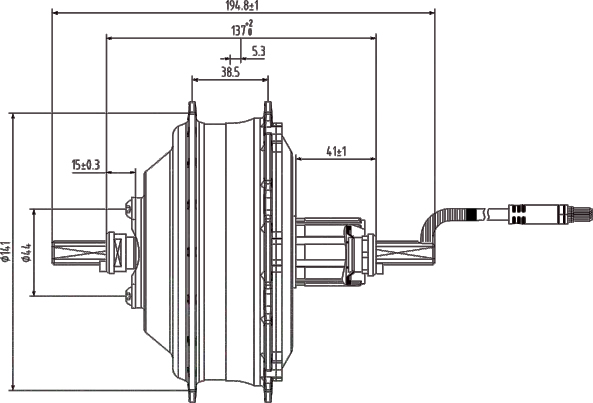

Drawing of DGWH2C , DGWH2S-Rear Drive Motor-city bike
