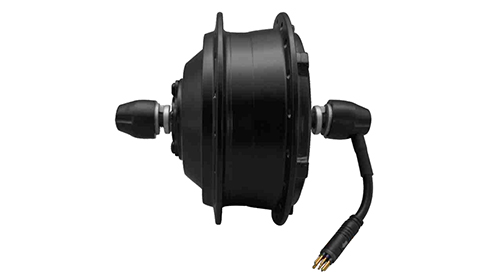

Main parameter of DGWH1-Front Drive Motor



specificationparameter
Driving positionFront
Wheel size16in-28in
Spoke36holes 12G/13G
Rated power250W~300W
Rated voltage36V~48V
Max.torque≥40N.m
Efficiency≥80%
Cable sideRight
Number of magnet20
Reduction gear ratio1:5.2
Installation dimension100mm
Inside speed sensor1~6
Hall sensorWith/Without
BrakeDisc brake/V-brake
Classification of waterproofIPX5
Weight2.8Kg

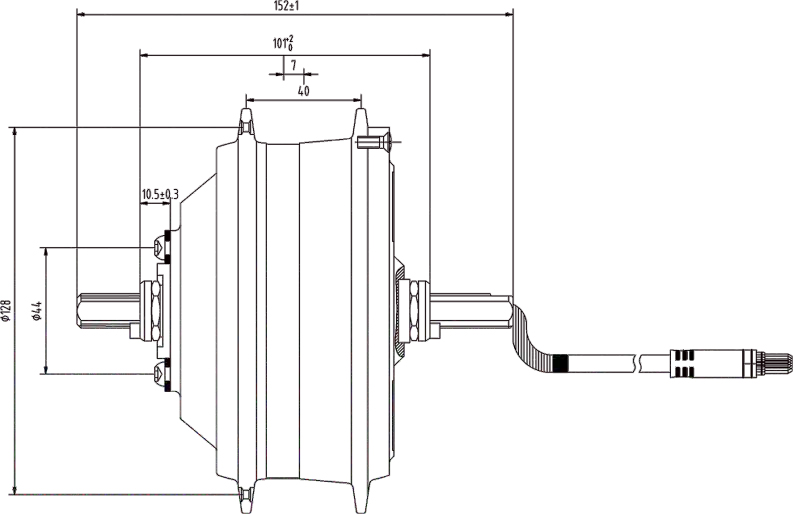

Drawing of DGWH1-Front Drive Motor


DGWH1
