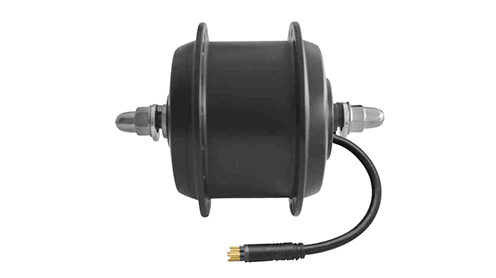

Main parameter of DGWQ1-Front Drive Motor


specificationparameter
Driving positionFront
Wheel size16in-24in
Spoke13G,36holes
hole diameter 3.2-3.4mm
Rated power180W~230W
Rated voltage24V~36V
Max.torque≥20N.m
Efficiency≥80%
Cable sideRight
Number of magnet14
Reduction gear ratio1:11.66
Installation dimension100mm
Inside speed sensor1~6
Hall sensorWith/Without
BrakeV-brake
Classification of waterproofIPX5
Weight2.0Kg

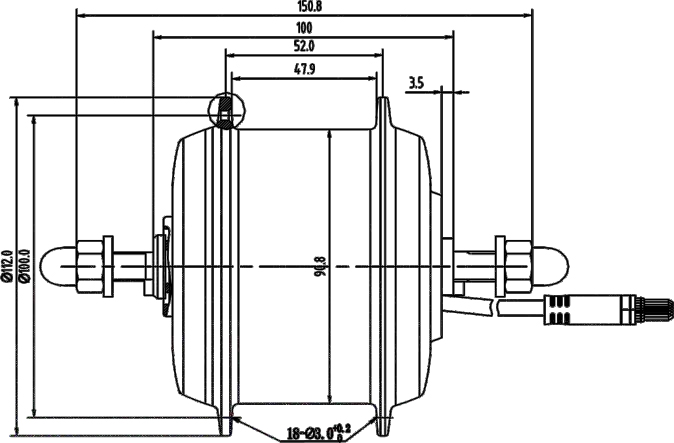

Drawing of DGWQ1-Front Drive Motor


DGWQ1
