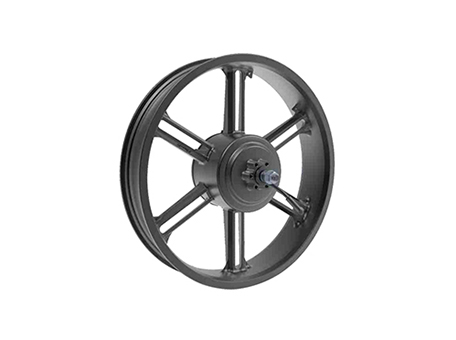

Main parameter of DGW25R  Ebike Brushless Motor


specificationparameter
Driving positionRear
Wheel size20in-28in
Spoke36holes 12G
Rated power750W
Rated voltage36V~48V
Max.torque≥90N.m
Efficiency≥80%
Cable sideLeft
Number of magnet20
Reduction gear ratio1:5
Installation dimension175mm~190mm
Inside speed sensor1~6
Hall sensorWith/Without
Free wheelCassette 9-10S/
Screw 6-7S
BrakeDisc-brake/V-brake
Classification of waterproofIPX5
Weight4.9Kg

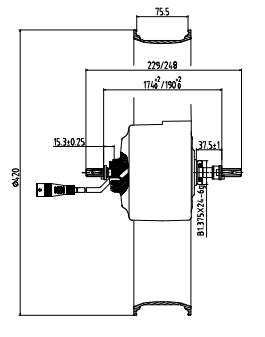

Drawing of DGW25R Ebike Brushless Motor



DGW25R
