Specification of DGW09NC, DGW09NS-Rear Drive Motor-MTB



specificationparameter
Driving positionRear
Wheel size24in-29in
Spoke36holes 12G/13G
Rated power350W~500W
Rated voltage36V~48V
Max.torque45N.m(48V,26in,38KM,350W,15A)
Efficiency≥80%
Cable sideLeft
Number of magnet46
Reduction gear ratioDirect drive
Installation dimension135mm
Inside speed sensor1~6
Hall sensorWith/Without
Free wheelCassette 8-10s/Screw 6-7s
BrakeDisc-brake
Classification of waterproofIPX5
Weight4.9Kg



Drawing of DGWH2C , DGWH2S-Rear Drive Motor-city bike

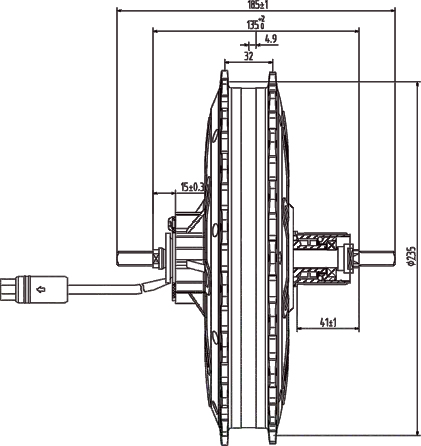

DGW09NC

Cassette freewheel 8-10 SP

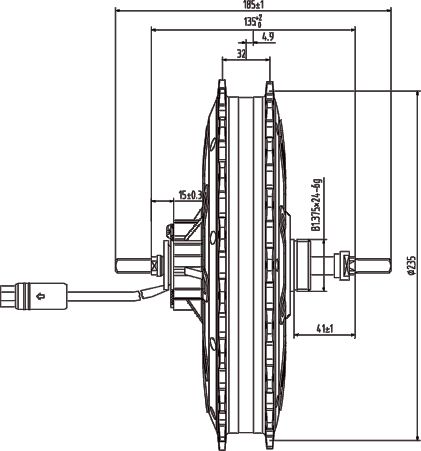

DGW09NS

Screw freewheel 6-7 SP
