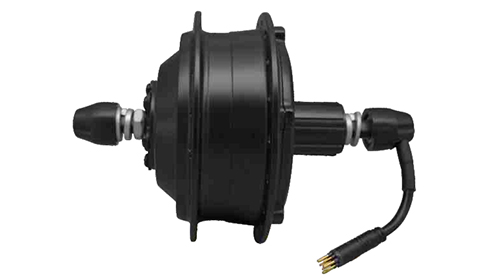

Main parameter of DGWH2C/DGWH2S-Rear Drive Motor-City Bike


specificationparameter
Driving positionRear
Wheel size16in-28in
Spoke36holes 12G/13G
Rated power250W~300W
Rated voltage36V~48V
Max.torque≥40N.m
Efficiency≥80%
Cable sideRight
Number of magnet20
Reduction gear ratio1:5.2
Installation dimension135mm
Inside speed sensor1~6
Hall sensorWith/Without
Free wheelCassette 8-10S
Screw 6-7S
BrakeDisc-brake
V-brake
Classification of waterproofIPX5
Weight2.9Kg


Drawing of DGWH2C/DGWH2S-Rear Drive Motor-City Bike

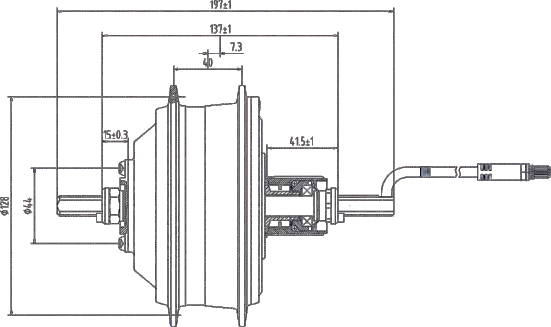

Drawing-of-DGWH2C


Cassette freewheel 8-10 SP

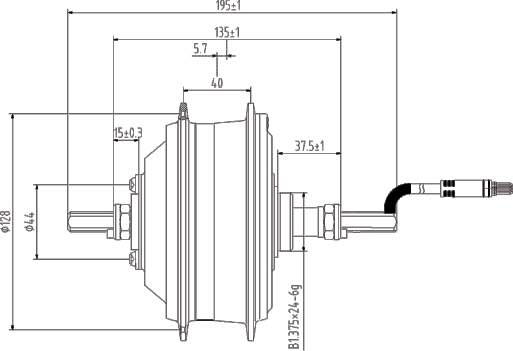

Drawing-of-DGWH2S


Screw freewheel 6-7 SP
