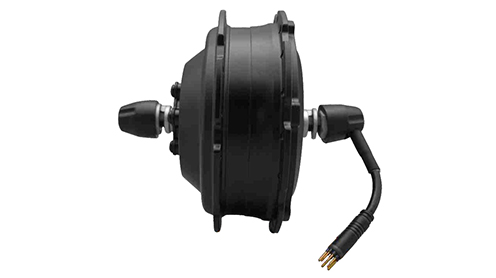

Name: DGWX1-Front Drive Motor
Brand: Suzhou Shengyi Motor Co., Ltd.

+86-512-65963935

Helical bevel gear provides high speed and high rated power, and cable side is right, support 50nm max. torque.

GET A QUOTE

Electric Bike Motor



Ebike Mid Motor



CMT09 Ebike Mid Motor CMT03 Ebike Mid Motor CMT07 Ebike Mid Motor CMT03P Ebike Mid Motor

Ebike Rear Motor



Ebike Front Motor



DGW12NM-Front Drive Motor DGW12NR/12ND-Front Drive Motor DGW11-Front Drive Motor DGWH1-Front Drive Motor DGWX7-Front Drive Motor DGWX1-Front Drive Motor DGWQ1-Front Drive Motor DGW10F-Front Drive Motor DGW23ND-Front Drive Motor

Ebike Brushless Motor



DGW07-R16 Ebike Brushless Motor DGW25R Ebike Brushless Motor Wheel

Main parameter of DGWX1-Front Drive Motor

specification	parameter
Driving position	Front
Wheel size	16in-28in
Spoke	36holes 12G/13G
Rated power	250W~350W
Rated voltage	36V~48V
Max.torque	≥50N.m
Efficiency	≥80％
Cable side	Right
Number of magnet	30
Reduction gear ratio	1:4.83

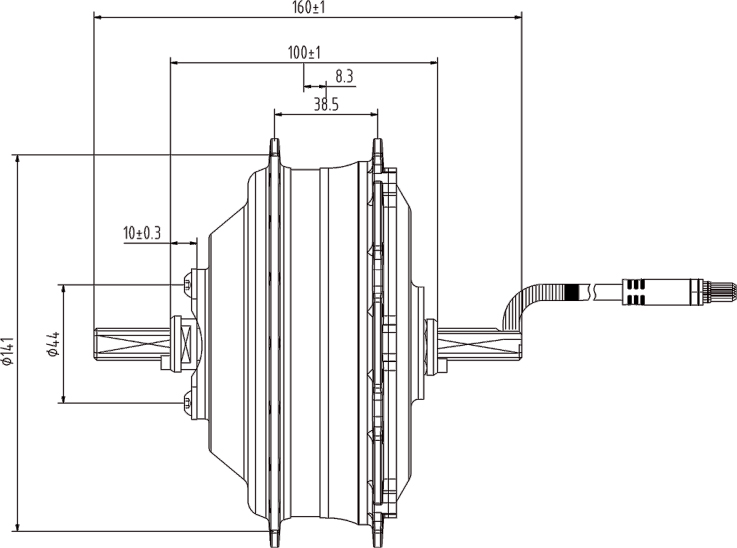

Installation dimension	100mm
Inside speed sensor	1~6
Hall sensor	With/Without
Brake	Disc-brake V-brake
Classification of waterproof	IPX5
Weight	3.3Kg
