Main parameter of DGW22C,DGW22S-Rear Drive Motor-MTB :


specificationparameter
Driving positionRear
Wheel size20in-28in
Spoke36holes 12G
Rated power350-500W
Rated voltage36V~48V
Max.torque≥50N.m
Efficiency≥80%
Cable sideRight
Number of magnet16
Reduction gear ratio1:5.3
Installation dimension138mm
Inside speed sensor1~6
Hall sensorWith/Without
Free wheelCassette 8-10s/Screw 6-7s
BrakeDisc-brake/ V-brake
Classification of waterproofIPX5
Weight3.9Kg


Drawing of DGW22C,DGW22S-Rear Drive Motor-MTB

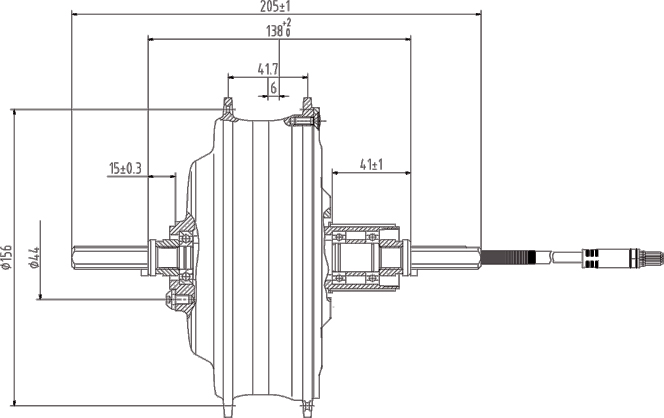

Drawing-of-DGW22C

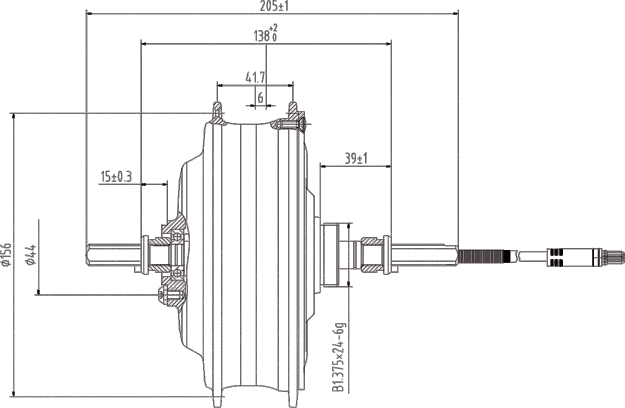

Drawing-of-DGW22S
